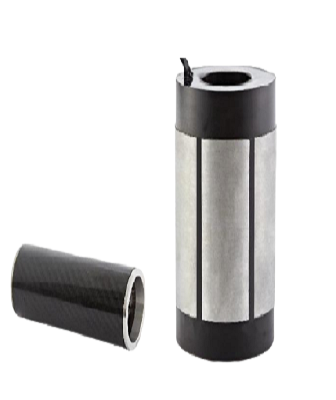

LSM/GSM Series Lathe/Grinding Machine Electric Spindle Frameless Motor
Lathe/Grinder Motorized Spindle
Features
- Installed inside the spindle, perfectly integrated with the spindle
- Rotor Type: Permanent Magnet
- Excellent magnetic circuit design, multi-field coupling analysis
- Stator high thermal conductivity epoxy potting, rotor carbon fiber wrapped protection
- High power density, ultra-low temperature rise, ultra-low temperature drift, no demagnetization
- High torque output, strong overload capacity
