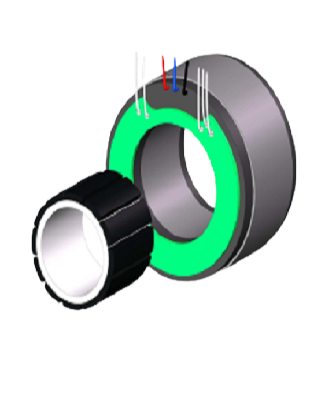

RTM series robot joint frameless motor

Fast response, high-performance motor for precise positioning

    Features

    • Hollow and large aperture, perfect integration with your joint module
    • Good heat dissipation and good insulation
    • The structure of the stator and rotor is compact, and the rotor adopts high-performance rare earth permanent magnet materials
    • Very low torque ripple, easy speed control and precise positioning
    • Small moment of inertia, fast dynamic response

Model Description

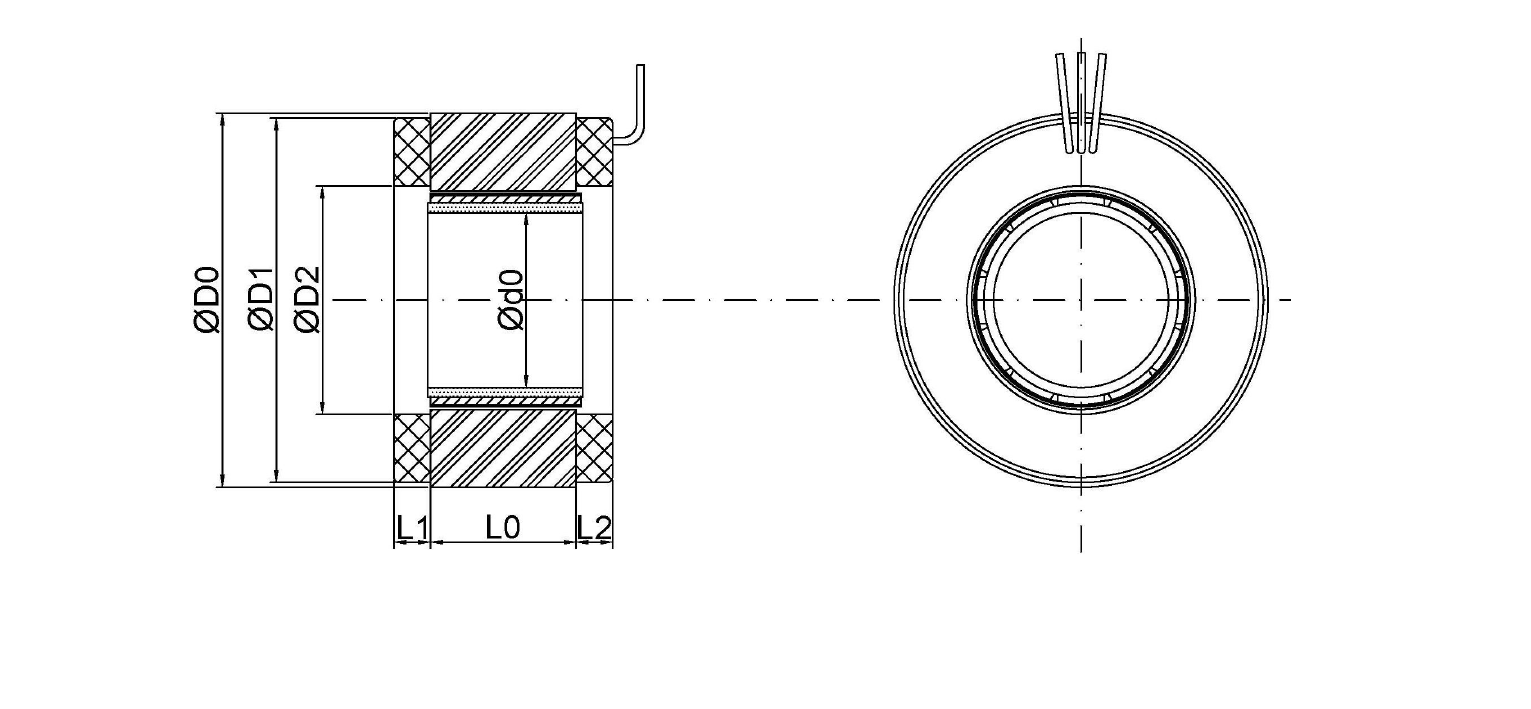

Dimensions


RAM series robot joint frameless servo motor

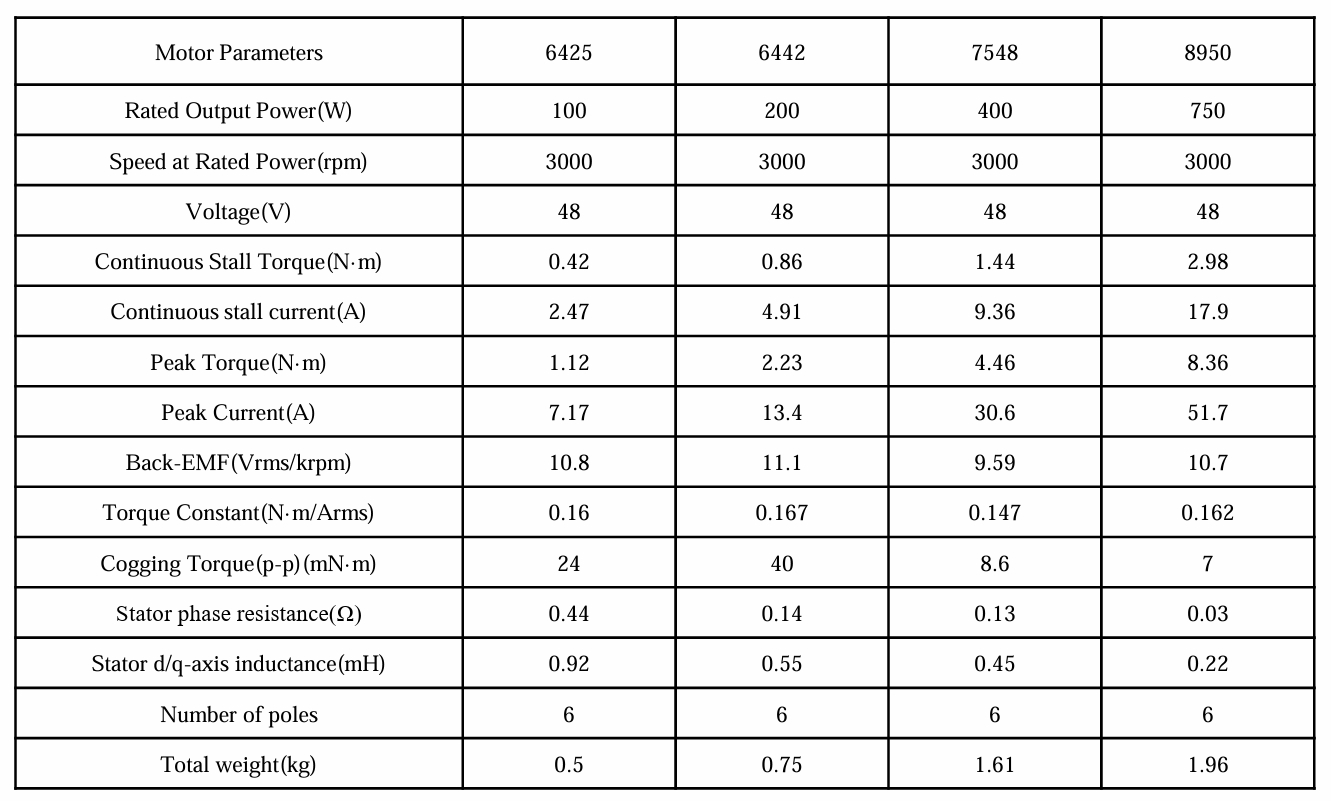

Electrical parameters

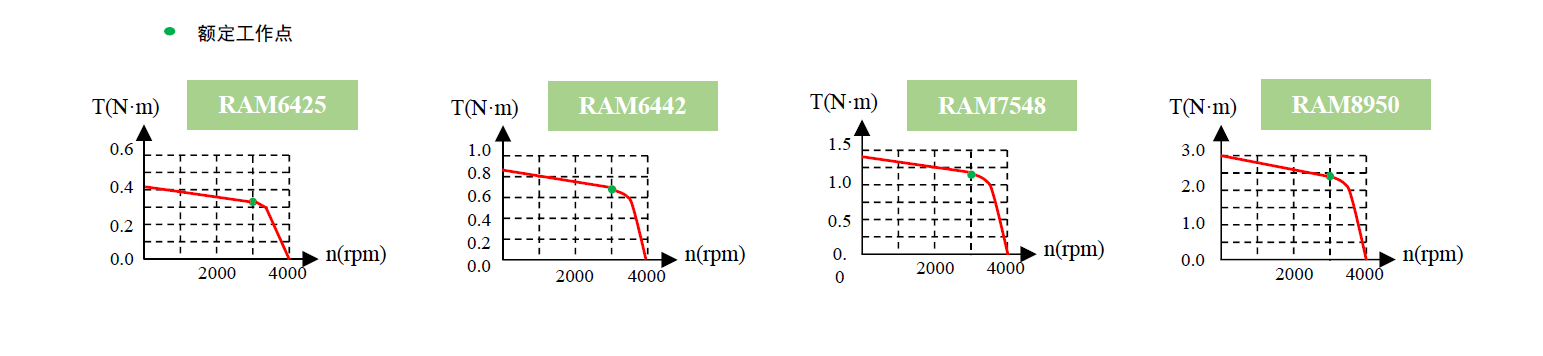

Rated continuous torque characteristic curve


Dimensions


RTM series robot joint frameless torque motor

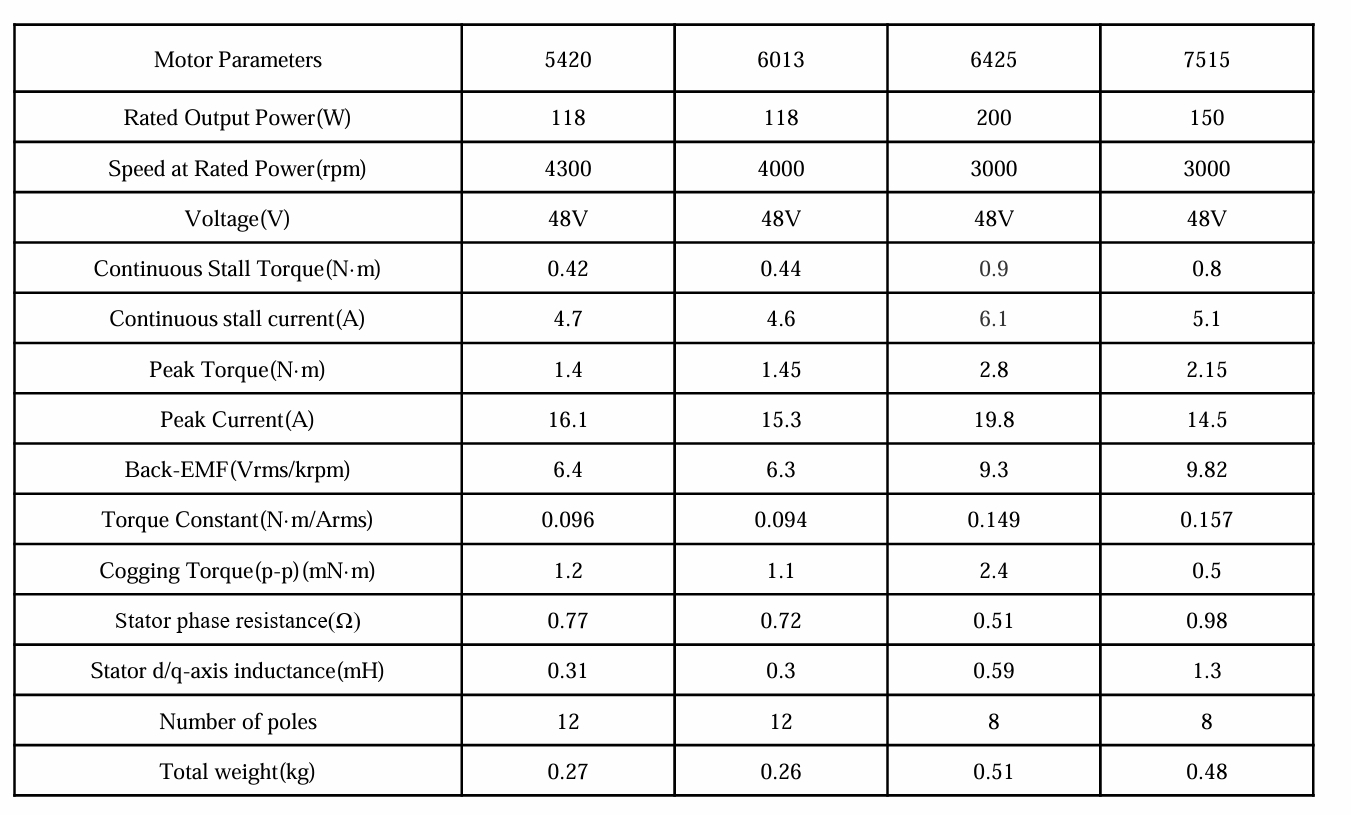

Electrical parameters

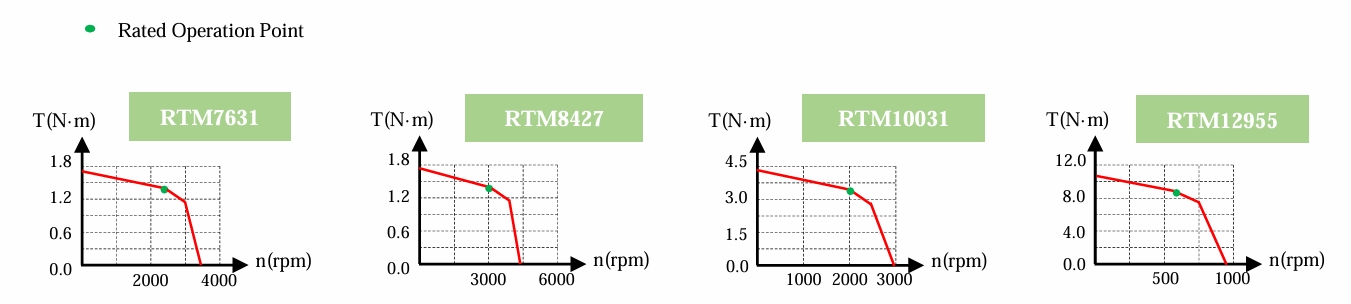

Rated continuous torque characteristic curve

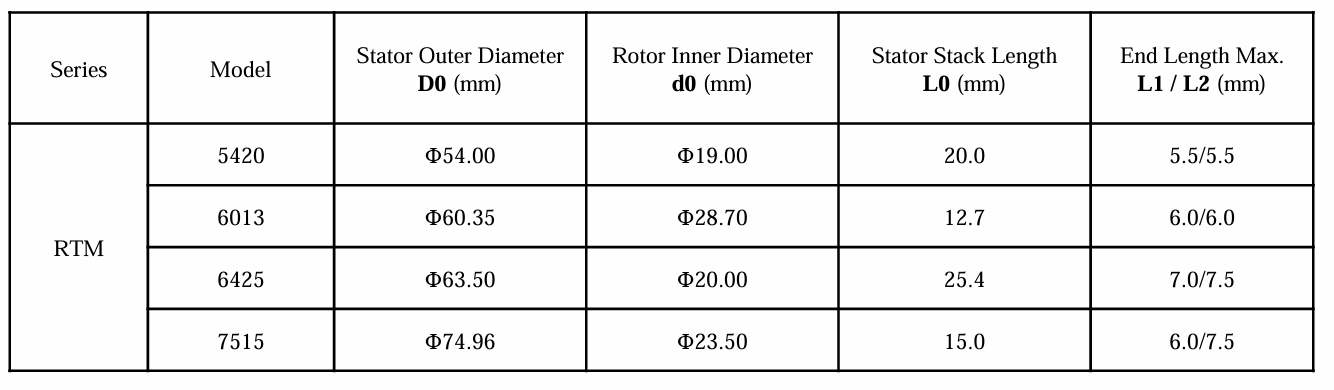

Dimensions
